Based on the ArchiMate 3 documents or objectives, a data object is a passive structure element that represents a piece of data that can be manipulated by behavior elements such as application functions or services. A passive structure element is a structural element that cannot perform behavior. Active structure elements can perform behavior on passive structure elements.
References: ArchiMate 3.2 Specification, Chapter 4 Generic Metamodel, Section 4.1 Behavior and Structure Elements, Subsection 4.1.1 Active Structure Elements 1; ArchiMate 3.2 Specification, Chapter 10 Application Layer, Section 10.2 Passive Structure Elements 1.

Comprehensive and Detailed in Depth Explanation:TheGroupingelement is acomposite elementin ArchiMate. Itcombines multiple elements into a single logical unitto simplify the representation of complex architectures.
UnlikeAggregation, which represents a relationship between a whole and its parts,Groupingallows the modeler to create arbitrary clusters of elements, regardless of their layer or type.
TheArchiMate 3.2 Specificationconfirms thatGroupingis a composite element used for structuring models and can include elements from different aspects and layers.
References:
* Archi User Guide
* ArchiMate 3.2 Specification

Based on the ArchiMate 3 documents or objectives, the top-level language structure of the ArchiMate concepts defines four types of elements: Behavior, Composite, Motivation, and Structure. Behavior elements represent units of activity performed by one or more active structure elements. Composite elements represent collections of other concepts that belong together based on some criteri a. Motivation elements represent the reasons for designing and implementing an architecture. Structure elements represent structural concepts that model the static construction or composition of concepts of the same or different types.

According to the ArchiMate 3.2 Specification1, external active structure elements are also called interfaces. An interface represents a point of access where one or more services are offered by an active structure element to its environment1. Therefore, the correct answer is B. Interfaces.

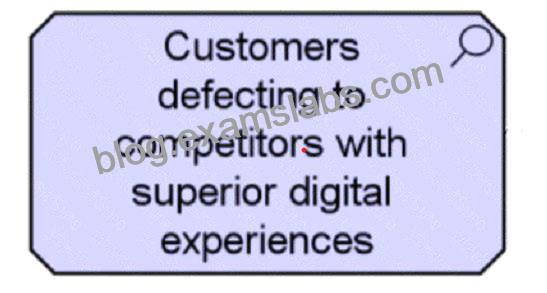

Based on the ArchiMate 3 documents or objectives, an assessment represents the result of an analysis of the state of affairs of the enterprise with respect to some driver. An assessment may reveal strengths, weaknesses, opportunities, or threats for some area of interest. An assessment is a motivation element that can be associated with other motivation elements such as stakeholders, drivers, goals, outcomes, etc. The notation for an assessment is a rectangle with a rounded top and a horizontal line inside it. The symbol in this question is an assessment that expresses the analysis of ArchiSurance’s situation.
References: ArchiMate 3.2 Specification, Chapter 7 Strategy Elements, Section 7.2 Motivation Elements 1; Assessment ArchiMate | QualiWare Center of Excellence 2.

Based on the ArchiMate 3 documents or objectives, a realization relationship indicates that an entity plays a critical role in the creation, achievement, sustenance, or operation of a more abstract entity. A serving relationship models that an element provides its functionality to another element. The diagram should use a realization relationship from the Risk Assessment service to the Enterprise Risk Management process to indicate that the service realizes the process. The diagram should also use a serving relationship from the Risk Measurement application to the Risk Assessment service to indicate that the application serves the service.

Comprehensive and Detailed in Depth Explanation:AWork Packageis anImplementation and Migration element in ArchiMate that represents aseries of actions designed to achieve a specific goal within a defined period. It is used tomodel sub-projects, tasks, projects, and programsas it captures the work needed to realize a specific aspect of an architecture.
TheArchiMate 3.2 Specificationexplicitly defines aWork Packageas an element that structures and organizes the necessary activities within aproject, program, or portfolio.
References:
* Archi User Guide
* ArchiMate 3.2 Specification

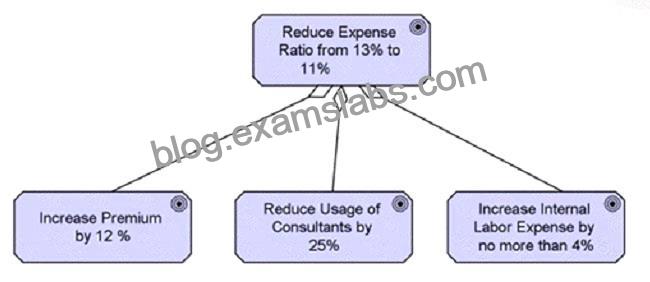

The diagram uses the ArchiMate notation for a goal element and an aggregation relationship. A goal element represents an end state that a stakeholder intends to achieve. An aggregation relationship indicates that a whole is composed of parts. In this case, the goal ‘Reduce Expense Ratio from 13% to 11%’ is composed of three sub-goals that contribute to its achievement.
References: ArchiMate 3.2 Specification, Chapter 10: Motivation Elements, Section 10.1 Goal; Chapter 5:
Relationships, Section 5.2 Aggregation.

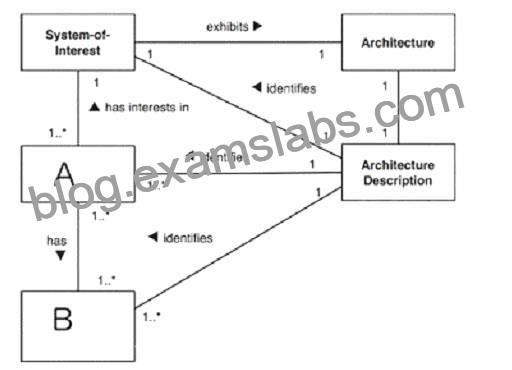

According to the conceptual model of architecture description from ISO/IEC 42010, an architecture view is a representation of a system from the perspective of a set of concerns. An architecture viewpoint is a specification of the conventions and rules for constructing and using an architecture view. A and B in the diagram correspond to these concepts respectively.
References: ISO/IEC/IEEE 42010: Conceptual Model1; ISO/IEC/IEEE 42010:2011 – Systems and software engineering – Architecture description2.

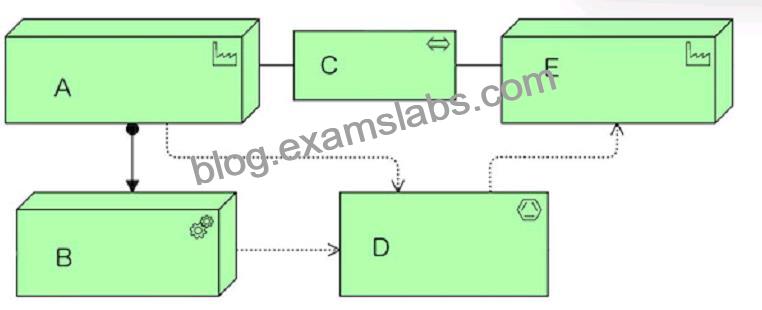

The diagram uses the ArchiMate notation for physical elements, which are used to model physical concepts like machines, physical installations, materials, and distribution networks. A is an equipment element, which represents a physical machine, tool, or instrument that can create, use, store, move, or transform materials. B is a material element, which represents tangible physical matter or energy. C is a distribution network element, which represents a physical network used to transport materials or energy.

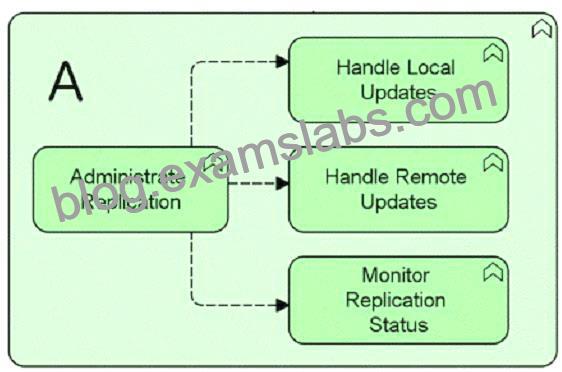

Based on the ArchiMate 3 documents or objectives, a technology function represents a collection of technology behavior that can be performed by a node. The diagram uses a composition relationship to indicate that technology function A consists of four other technology functions. The notation for a composition relationship is a solid line with a filled diamond at the end that points to the whole element. The diagram also uses an information flow relationship to indicate that information is exchanged from Administrate Replication to the other functions. The notation for an information flow relationship is a dashed line with an open arrowhead at the end that points to the direction of the flow.
References: ArchiMate 3.2 Specification, Chapter 4 Generic Metamodel, Section 4.1 Behavior and Structure Elements, Subsection 4.1.2 Structural Relationships 1; ArchiMate 3.2 Specification, Chapter 11 Technology Layer, Section 11.2 BehaviorElements 1; ArchiMate 3.2 Specification, Chapter 5 Relationships, Section 5.5 Other Relationships 1; ArchiMate Patterns – Technology Layer – General Geekery
2.

According to the ArchiMate 3.2 Specification1, external active structure elements are also called interfaces. An interface represents a point of access where one or more services are offered by an active structure element to its environment1. Therefore, the correct answer is B. Interfaces.

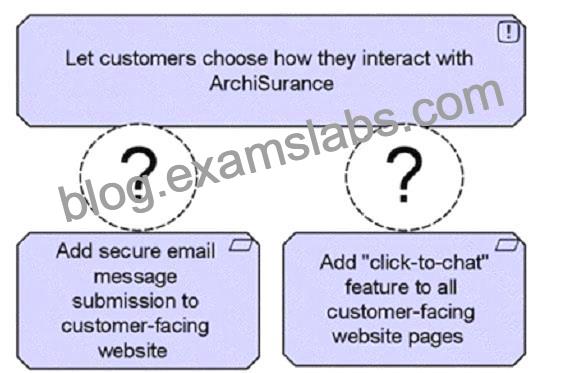

Based on the ArchiMate 3 documents or objectives, an aggregation relationship indicates that an element groups a number of other concepts. The aggregation relationship has been inspired by the aggregation relationship in UML class diagrams. Unlike composition, aggregation does not imply an existence dependency between the aggregating and aggregated concepts. The notation for an aggregation relationship is a solid line with an empty diamond at the end that points to the whole element. The diagram uses an aggregation relationship from the bottom elements to the top element to indicate that the top element groups the bottom elements.
References: ArchiMate 3.2 Specification, Chapter 5 Relationships, Section 5.1 Structural Relationships 1; Structural Relationship: Part 3 – ArchiMate Resources for FREE 2.

According to the ArchiMate 3.2 Specification1, the ArchiMate core language defines a structure of generic elements and their relationships, which can be specialized in different layers. Three layers are defined within the ArchiMate core language as follows:
The Business Layer depicts business services offered to customers, which are realized in the organization by business processes performed by business actors and roles.
The Application Layer depicts application services that support the business, and the applications that realize them.
The Technology Layer comprises both information and operational technology. You can model, for example, processing, storage, and communication technology in support of the application world and Business Layers, and model operational or physical technology with facilities, physical equipment, materials, and distribution networks.

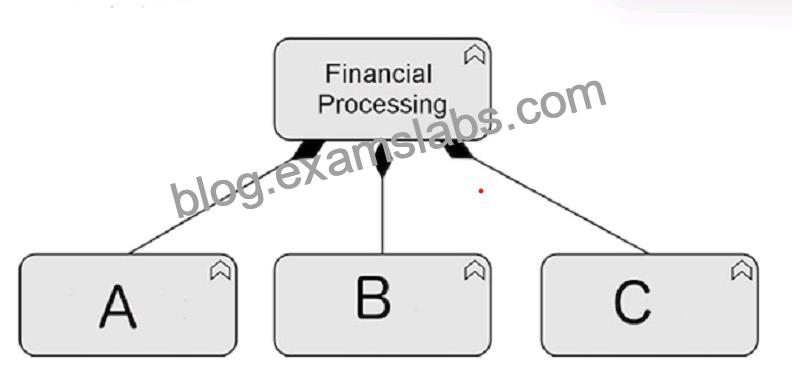

Based on the ArchiMate 3 documents or objectives, the diagram uses a composition relationship to indicate that the financial processing function consists of three sub-functions A, B, and C. A composition relationship is a type of structural relationship that represents a whole-part hierarchy between elements. The notation for a composition relationship is a solid line with a filled diamond at the end that points to the whole element.

Comprehensive and Detailed In-Depth Explanation:

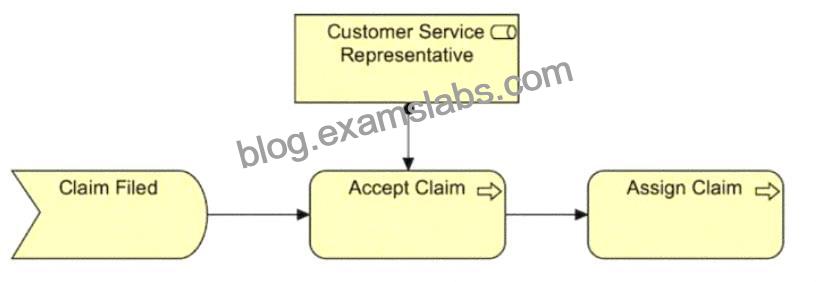

ThisArchiMate Business Layer diagramrepresentsa sequence of business processes triggered by a business event.
* “Claim Filed” is a Business Event, which means it represents anexternal occurrence that initiates a process.
* “Accept Claim” is a Business Process, meaning it is a structured activity that follows the event.
* “Assign Claim” is another Business Process, which follows after the “Accept Claim” process.
* A Customer Service Representative role is assigned to the “Accept Claim” process, but the focus of the diagram is the event-driven flow of processes.
Analysis of Answer Choices:
#A. The Claim Filed event assigns the Customer Service Representative to participate in the Accept Claim and Assign Claim processing.##Incorrect
* TheCustomer Service Representative role is involved only in the “Accept Claim” process, but the diagram does not indicate their role in “Assign Claim.”
* ArchiMate 3.2 Specification, Section 6.3.2, states thatBusiness Events trigger processes but do not assign roles.
#B. The event Claim Filed triggers the Accept Claim process which is serviced by the Customer Service Representative role before the Assign Claim process.##Incorrect
* WhileClaim Filed triggers Accept Claim, thefocus of the diagram is on process flow, not role assignments.
* The key relationship is between the business processes, not the role.
#C. The information that flows from Claim Filed to Accept Claim and then to Assign Claim is reviewed by the Customer Service Representative role.##Incorrect
* TheCustomer Service Representative role is assigned to “Accept Claim,” but there is no indication they review information across all steps.
* The diagramshows process flow, not an explicit review process.
#D. Business event Claim Filed triggers a business process Accept Claim which in turn triggers an Assign Claim process.##Correct Answer
* “Claim Filed” (Business Event) triggers “Accept Claim” (Business Process), which then triggers
“Assign Claim” (Business Process).
* ArchiMate 3.2 Specification, Section 6.3.1, states thatBusiness Events initiate Business Processes, and processes can trigger subsequent processes.
* This matches the flow depicted in the diagram.
#D. Business event Claim Filed triggers a business process Accept Claim which in turn triggers an Assign Claim process.
References:
* ArchiMate 3.2 Specification: Sections 6.3.1 (Business Processes) and 6.3.2 (Business Events).
* Archi User Guide: Modeling event-driven process flows in business architecture.
